The team at Stamina Storage provided a complete turnkey service, including a full warehouse survey and consultation, CAD drawings and a system layout tailored to the customer’s requirements

Project Scope

Our role covered the complete process, from layout planning and technical drawings to the final professional installation ensuring JAS could make the most of their warehouse footprint with a compliant, high-capacity system.

The solution

The installation featured a single entry pallet racking run, 1100mm deep, consisting of 11 bays at 3300mm width each. Nine of these bays were fitted with six beam levels to accommodate high-volume pallet storage, with anti-collapse mesh fitted to the rear for added personnel protection and product containment.

For safety and compliance, all beams were supplied with two locking clips, loading signage was installed on the end frame, and our Protect-It XL upright protection guards were added to minimise impact damage. In addition a protective barrier was fitted to the exposed end frame for enhanced safety.

The team at Stamina Storage provided a complete turnkey service, including a full warehouse survey and consultation, CAD drawings and a system layout tailored to the customer’s requirements, the supply of quality pallet racking and certified safety accessories, and professional installation by qualified fitters in line with SEMA standards.

The system was delivered and installed to spec, ready to support JAS’s fast-moving, high-volume logistics operation.

Clients Comment

 “Following previous successful projects with the team at Stamina, it was an easy decision to bring them in again for this installation. As always, they delivered a well-planned, high-capacity racking system on time and with great attention to detail. Their understanding of the operational pressures we face in logistics makes them a trusted partner for our warehouse needs.”

Paul Lawrence
Regional Director at JAS Logistics

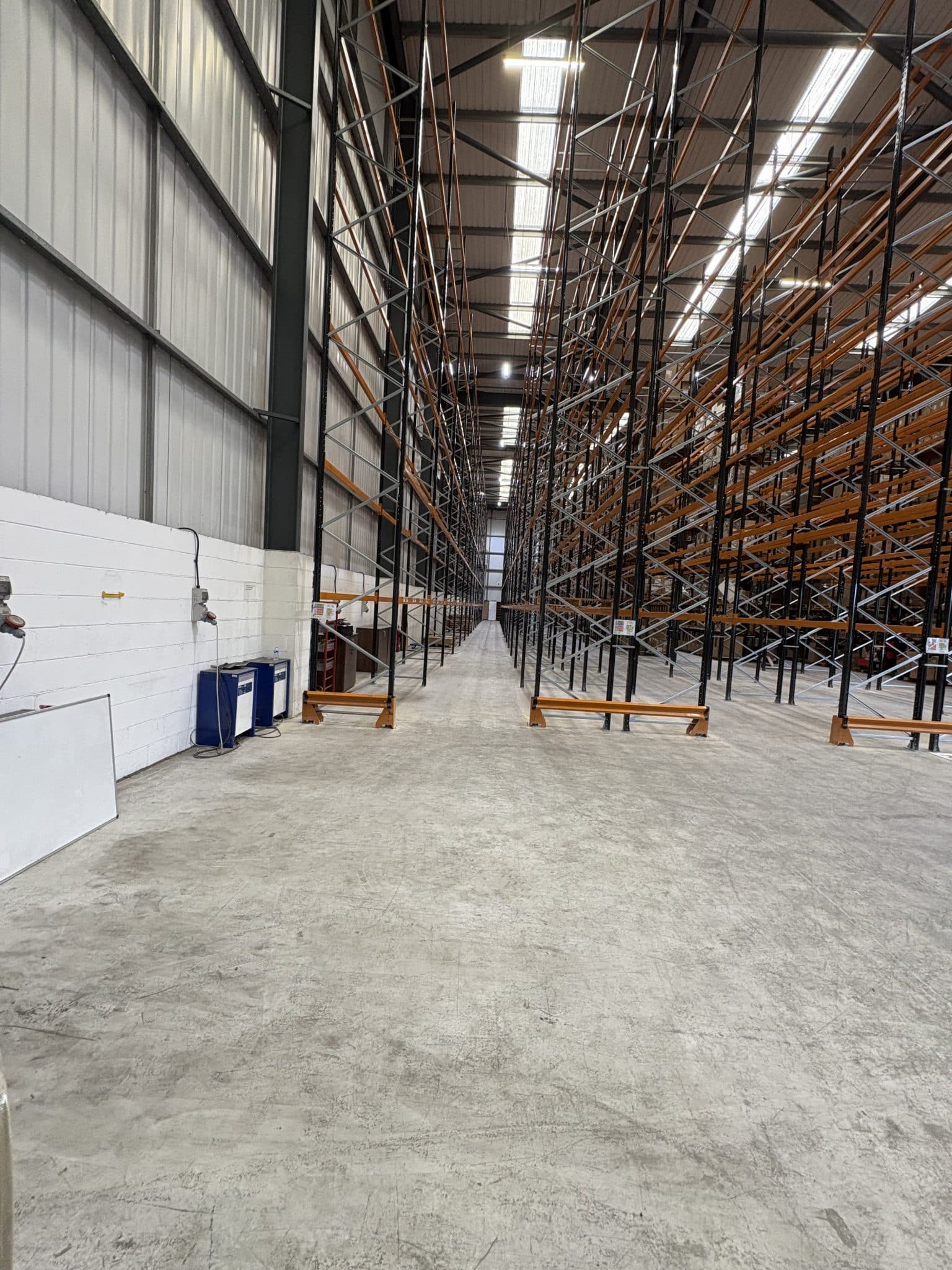

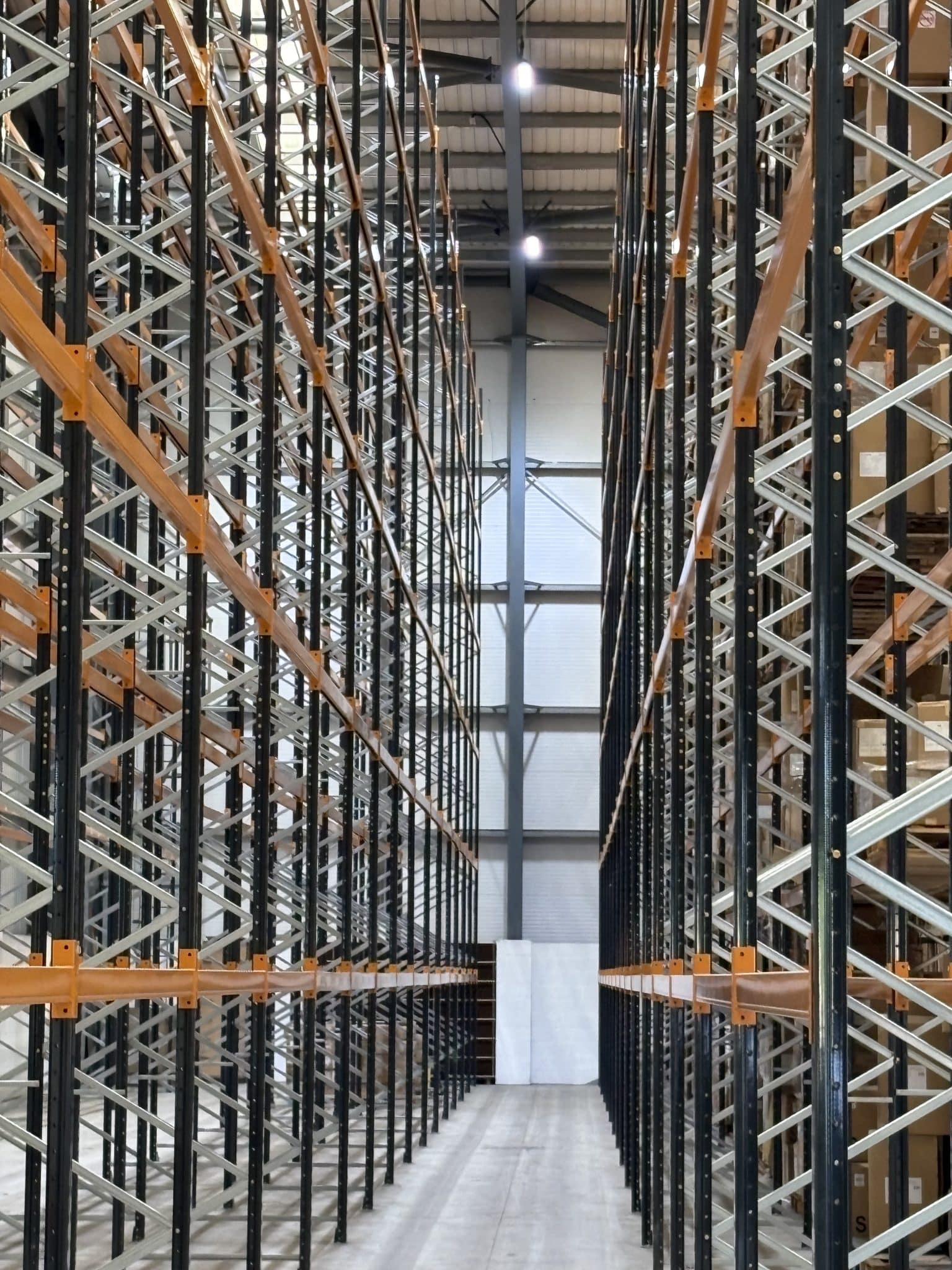

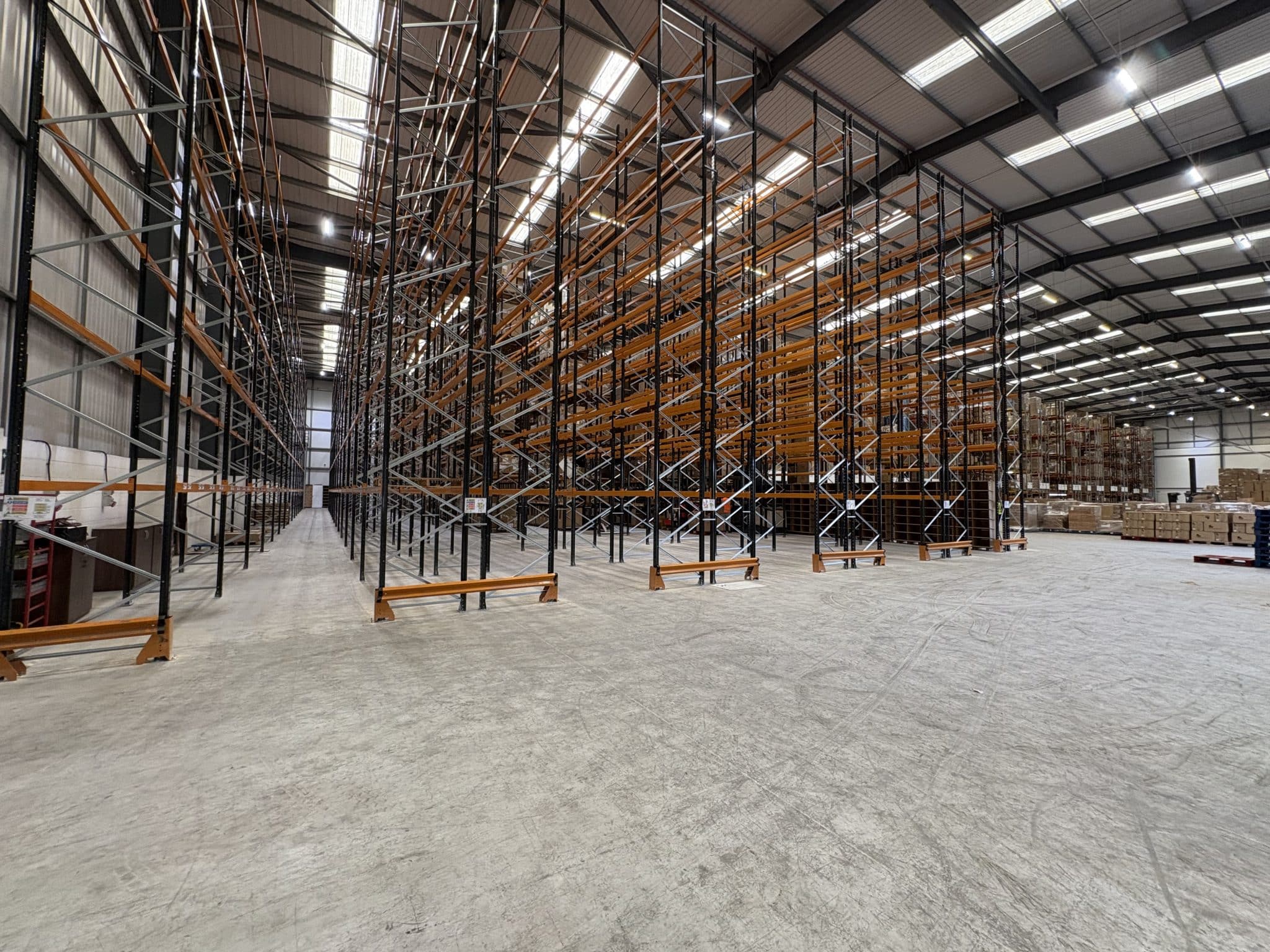

Project Images
